The machine tool with AC servo driving and CNC control has three axis, which is two-axis. The internal and external tool recession achieved by the swing of the tool post, and column moving makes radically feed. Both the spindle of the tool and worktable are centered by hi-precision bearings. The spindles are optimal rigidity and clearance. The accuracy is grade 6.
The temperature of the hydraulic oil and coolant oil can be adjust automatically by the adjusting device, meanwhile coolant oil can circulating flow in the machine tool bed to guarantee the consistency temperature of each location, which can effectively control of the accuracy of thermal deformation. The machine tool bed adopts the optimal cutting processing structure, which can ensure the chip discharged smoothly.
Characteristics: The tool holder used hydrostatic technology, which has the function of tool recession obliquely, and stopping automatically while the cutter increased, etc.

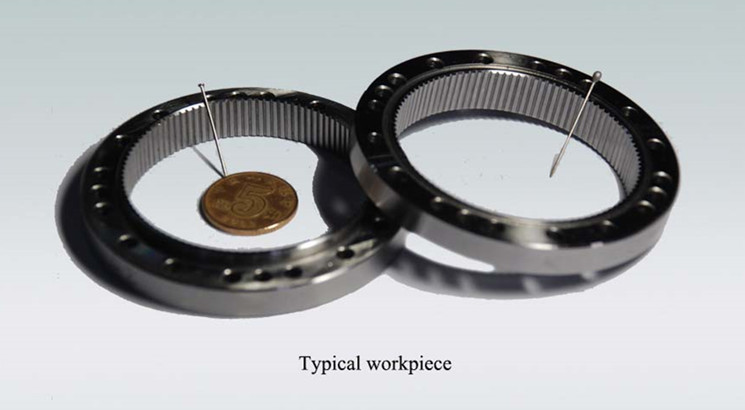

It is especially suitable for the aviation, industrial robot with reducer and other processing industry.
|
Specifications
|
YGX5112
|
|
Max.diameter of external（mm）
|
120
|
|
Max.diameter of internal（mm）
|
100+D刀
|
|
Max. module（mm）
|
2
|
|
Max.face width（mm）
|
30
|
|
Max.stroke length（mm）
|
40
|
|
Stroke speed（str/min）
|
150～1250
|
|
Cutter relieving（mm）
|
≥0.3
|
|
Axial slide travel range of cutter head
|
-
|
|
Adjusting amount of stroke position（mm）
|
20
|
|
Spindle diameter（mm）
|
65
|
|
Diameter of worktable（mm）
|
240
|
|
Sloping angle of worktable
|
-
|
|
Distance between axis of cutter spindle and worktable（mm）
|
-50～150
|
|
Distance between the nose of spindle and worktable surface（mm）
|
160～220
|
|
Total power（kw）
|
10.5
|
|
Total weight（Kg） approx.
|
3000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
Numerical control system: 828D Siemens
|
|
Spindle frequency inverter: Schneider
|
|
One set hydraulic station: Outside
|
|
One set cooling and chip conveyor: Outside
|
|
Centralized auto-lubrication: Intermittent
|
|
Electric cabinet: Outside
|
|
The cutter adaptor: 2 pieces
|
|
Half cover
|
|
Accessory box: Internal
|
|
Machine sizing block
|
|
Optional Accessories
|
|
Numerical control system: Fanuc Oimd
|
|
Fixture
|
|
Iron block for column increase
|
|
Special cutter adaptor
|
|
Shaper cutter
|
|
Helix guide
|
|
Deburring unit
|
|
Full cover
|
